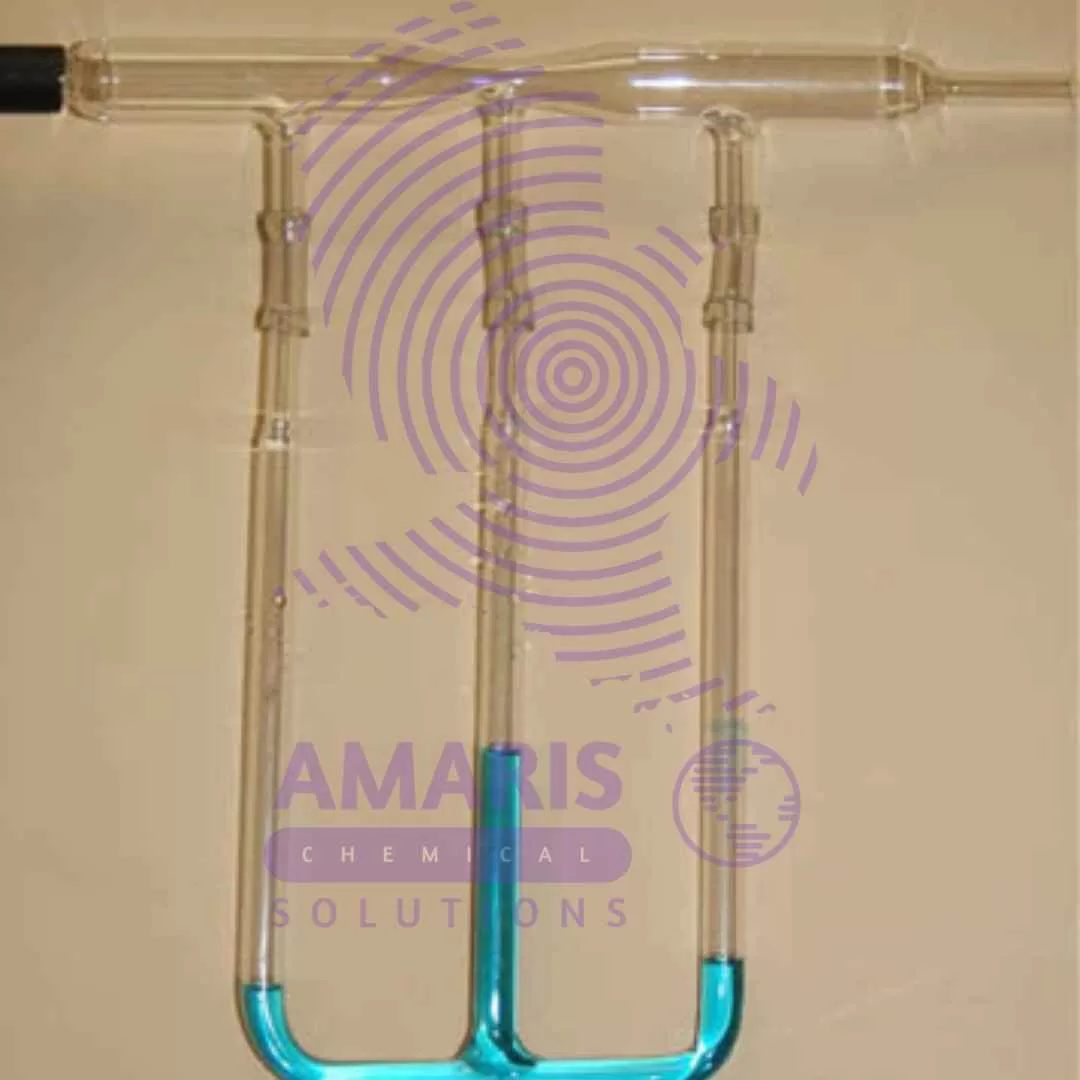

Bernoulli Tube Apparatus

Uses of  Bernoulli tube apparatus

Teaching Tool:

The Bernoulli tube apparatus is often used in physics and engineering classrooms to help students understand Bernoulli’s principle and its applications in fluid dynamics. It provides a hands-on and visual way to demonstrate how pressure and velocity are related in fluid flow.

Aeronautics and Aerodynamics:

The apparatus helps explain the concept of lift in aircraft wings. By showing how faster airflow over the curved upper surface of an airfoil leads to lower pressure and upward lift, the apparatus aids in understanding the principles behind flight.

Fluid Flow in Pipes:

The apparatus provides insight into how the pressure and velocity of fluid change as it flows through constricted sections of pipes. This is relevant in areas such as plumbing, industrial fluid systems, and hydraulic engineering.

Measurement and Calibration:

The Bernoulli tube apparatus can be used to calibrate pressure sensors and instruments. By observing the pressure differences in the apparatus, engineers and researchers can validate and adjust pressure measurement devices.

Demonstrating the Venturi Effect:

The Venturi effect, where fluid speed increases and pressure decreases in a constricted section of a pipe, is essential in various fields, including medical devices (such as nebulizers), fuel injectors, and vacuum systems. The apparatus visually illustrates this effect.

Fluid Dynamics Research:

The apparatus can be used for research purposes to study fluid behavior in different scenarios, including the interaction between fluid flow and pressure changes in various geometries.

Design and Optimization:

Engineers and designers use the principles illustrated by the apparatus to optimize the performance of devices such as nozzles, diffusers, and flow meters. It helps in designing systems that achieve desired pressure and flow characteristics.

Aviation and Aerospace Education:

The Bernoulli tube apparatus is often used in aviation and aerospace museums or educational centers to engage visitors in hands-on demonstrations of aerodynamic principles.

Demonstrations in Museums and Exhibitions:

The apparatus is employed in science museums, interactive exhibitions, and science centers to captivate audiences and help them grasp fundamental fluid dynamics concepts.

Fluid Mechanics Courses:

In higher education institutions, particularly in engineering and physics departments, the Bernoulli tube apparatus is used to enhance the teaching of fluid mechanics, fluid dynamics, and related topics.
