Hares Apparatus on stand

Whatsapp Order

Add to wishlist
Compare

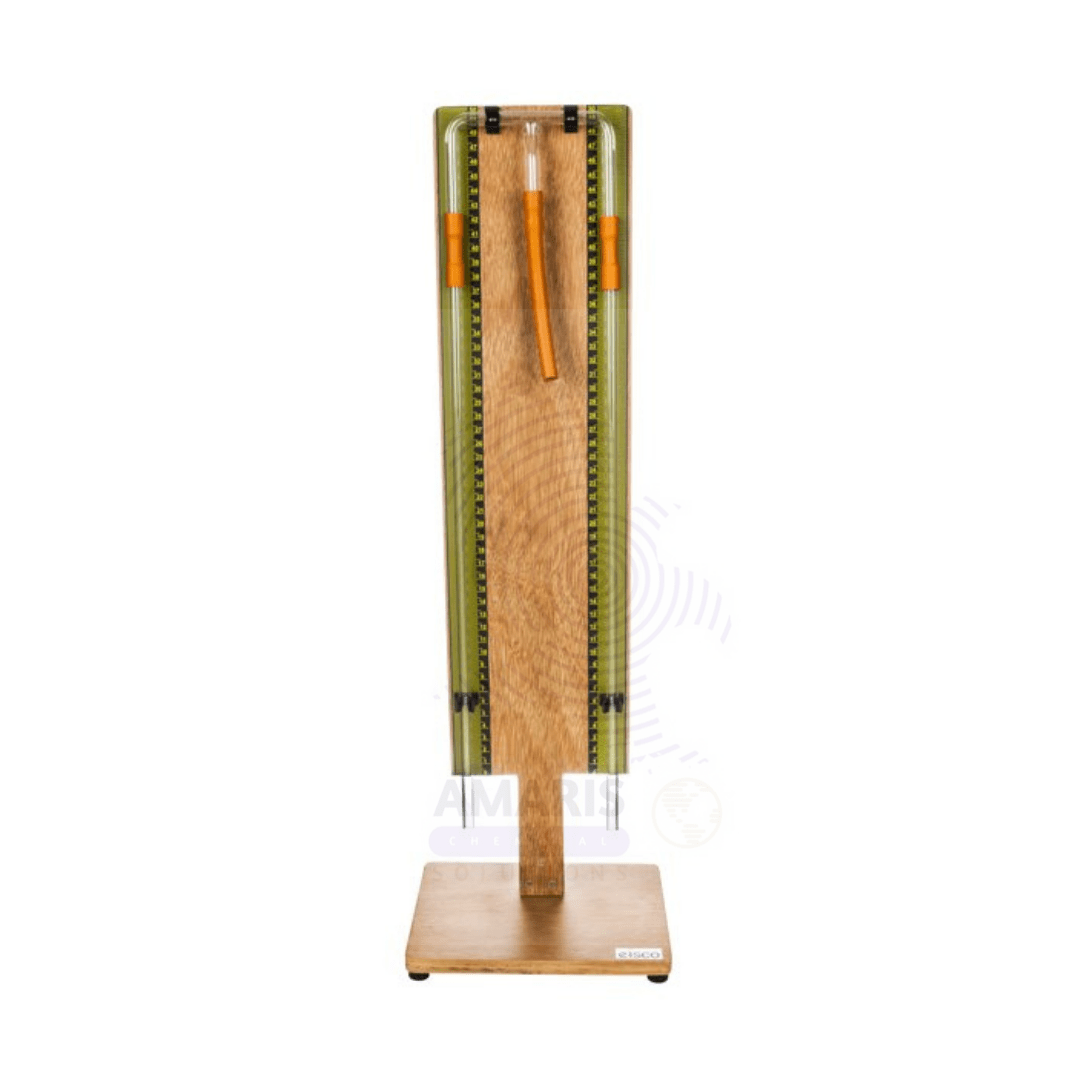

Hare’s Apparatus is a device used in laboratories to compare the densities of two liquids. It consists of two glass tubes connected at the bottom by a piece of flexible tubing and attached to a stand to keep the setup stable and upright. Here’s a detailed breakdown of its components and function:

Components:

  1. Glass Tubes: Two vertical, transparent glass tubes of equal diameter.
  2. Flexible Tubing: A short piece of rubber or plastic tubing connecting the bottoms of the glass tubes.
  3. Stopcock or Clamps: Often included in the flexible tubing to control the flow of liquids.
  4. Stand: A stable base and support structure to hold the glass tubes in place and upright.

Function:

  • Comparison of Liquid Densities: Hare’s Apparatus is used to determine the relative densities of two immiscible liquids.
  • Working Principle: The apparatus works on the principle of hydrostatic pressure. When the apparatus is set up, and each glass tube is filled with a different liquid, the heights of the liquids in the tubes will vary according to their densities. The denser liquid will have a lower height, while the less dense liquid will rise higher.

Usage:

  1. Preparation: Fill the two glass tubes with the liquids whose densities are to be compared.
  2. Equalizing Levels: Ensure that both liquids are at the same level when the apparatus is initially set up to avoid errors due to pressure differences.
  3. Observation: Once the system is stable, observe and measure the heights of the liquid columns in each tube.
  4. Calculation: Use the measured heights to calculate the relative densities of the liquids

KSh 3,230.00 KSh 4,230.00

Compare

Hares Apparatus

  1. Density Comparison:
    • Educational Demonstrations: Hare’s Apparatus is used in classrooms and laboratories to visually demonstrate the concept of density and how it affects the height of liquid columns.
    • Experimental Determination: It allows students and researchers to determine the relative densities of two immiscible liquids by comparing the heights of the liquid columns in the two connected tubes.
  2. Hydrostatic Pressure Studies:
    • Principle of Hydrostatic Pressure: The apparatus helps illustrate how different liquids exert different pressures at the same height due to their varying densities.
    • Pascal’s Law: Demonstrates Pascal’s principle by showing how pressure applied to a fluid is transmitted equally in all directions.
  3. Buoyancy and Archimedes’ Principle:
    • Understanding Buoyancy: By comparing the densities of different liquids, students can better understand the concept of buoyancy and why objects float or sink in different liquids.
  4. Viscosity Studies:
    • Flow and Viscosity: While primarily used for density comparison, Hare’s Apparatus can be adapted to observe the flow characteristics of different liquids, providing insights into their viscosities.
  5. Material Science:
    • Solubility and Miscibility: It can be used to study the miscibility of different liquids and their solubility properties, which is important in material science and chemical engineering.
  6. Thermodynamic Studies:
    • Temperature Effects on Density: By conducting experiments at different temperatures, students can observe how temperature changes affect the density of liquids, linking to concepts in thermodynamics.
  7. Calibration and Verification:
    • Instrument Calibration: It serves as a simple tool for calibrating other instruments that measure liquid density, by providing a straightforward method for density comparison.
    • Quality Control: In industrial laboratories, it can be used for quick quality control checks to ensure the consistency of liquid densities in processes such as food and beverage production.
  8. Chemical Analysis:
    • Purity Testing: The apparatus can help in assessing the purity of liquids, as impurities often alter the density of a liquid.
SKU: ACS66757CHEM0 Category:

SAFETY PRECAUTIONS

  1. Proper Handling of Glassware:
    • Inspect Glassware: Before use, inspect the glass tubes and connectors for any cracks or defects to prevent breakage during the experiment.
    • Handle with Care: Always handle glassware carefully to avoid breakage and potential injury from sharp edges.
  2. Secure Setup:
    • Stable Stand: Ensure the stand is stable and secure on a flat surface to prevent the apparatus from tipping over.
    • Proper Clamping: Use clamps and supports to firmly hold the glass tubes in place, preventing them from slipping or falling.
  3. Chemical Safety:
    • Identify Chemicals: Be aware of the chemicals being used in the apparatus, including their properties and potential hazards.
    • Use Appropriate Liquids: Avoid using corrosive, toxic, or flammable liquids unless specifically required for the experiment and proper safety measures are in place.
    • Labeling: Clearly label all liquids to avoid confusion and potential chemical reactions.
  4. Personal Protective Equipment (PPE):
    • Wear Safety Goggles: To protect eyes from splashes and potential breakage of glassware.
    • Gloves: Use appropriate gloves to protect hands from harmful chemicals and glass shards.
    • Lab Coat: Wear a lab coat to protect skin and clothing from spills and splashes.
  5. Spill Management:
    • Clean Work Area: Keep the work area clean and free of unnecessary materials that could be contaminated or cause spills.
    • Spill Kits: Have spill kits readily available to quickly address any spills, especially when working with hazardous liquids.
  6. Proper Disposal:
    • Dispose of Chemicals Safely: Follow proper procedures for disposing of chemical waste to avoid environmental contamination and health hazards.
    • Broken Glass Disposal: Dispose of broken glass in designated containers to prevent injury.
  7. Ventilation:
    • Use in Well-Ventilated Area: Conduct experiments in a well-ventilated area or under a fume hood, especially when working with volatile or hazardous chemicals.
  8. Training and Supervision:
    • Training: Ensure all users are trained in the proper use of Hare’s Apparatus and understand the associated risks and safety measures.
    • Supervision: Experiments involving students or inexperienced users should be supervised by a knowledgeable instructor or lab technician.
  9. Emergency Preparedness:
    • First Aid: Have a first aid kit readily available in the laboratory.
    • Emergency Contacts: Know the location of emergency contact numbers, safety showers, eyewash stations, and fire extinguishers.
