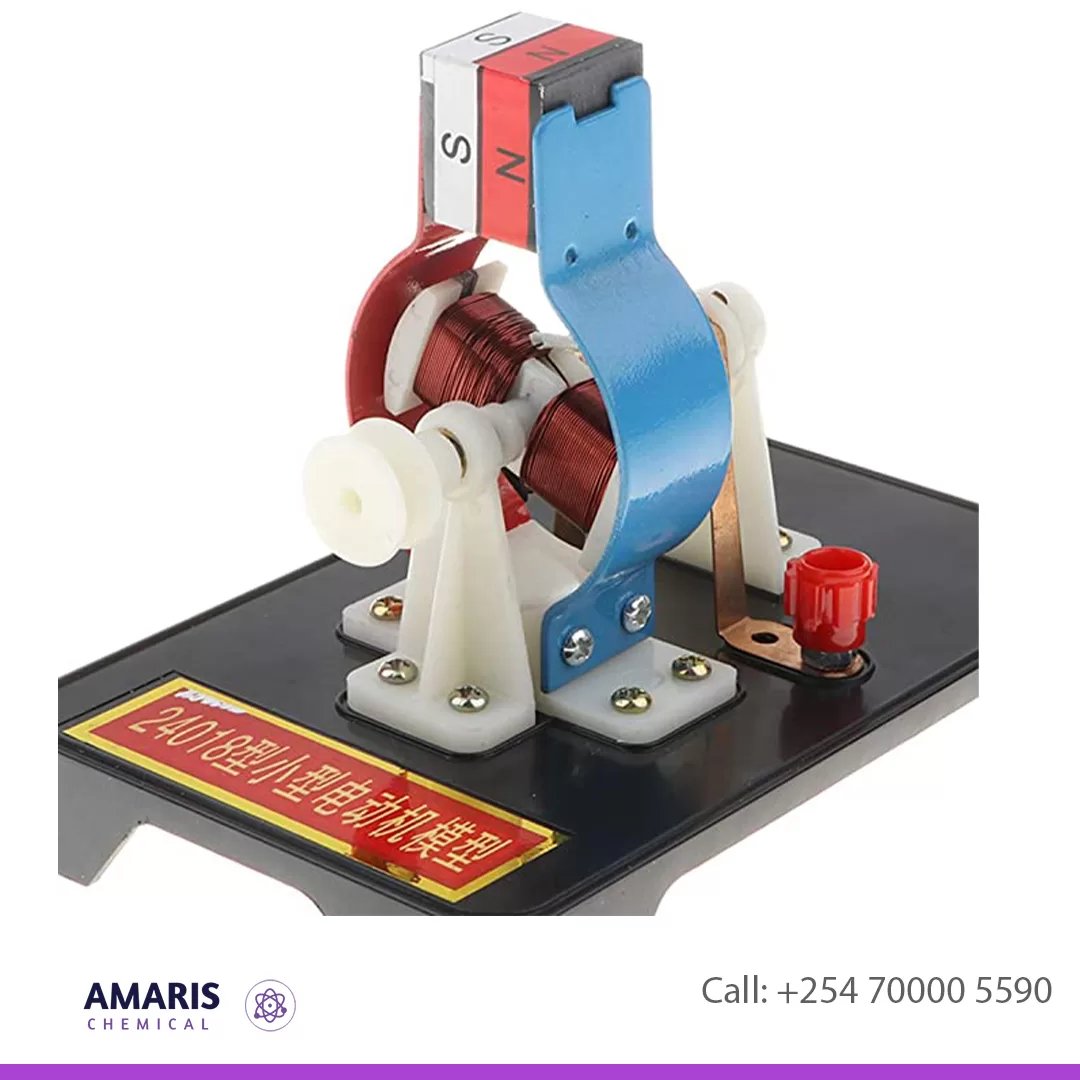

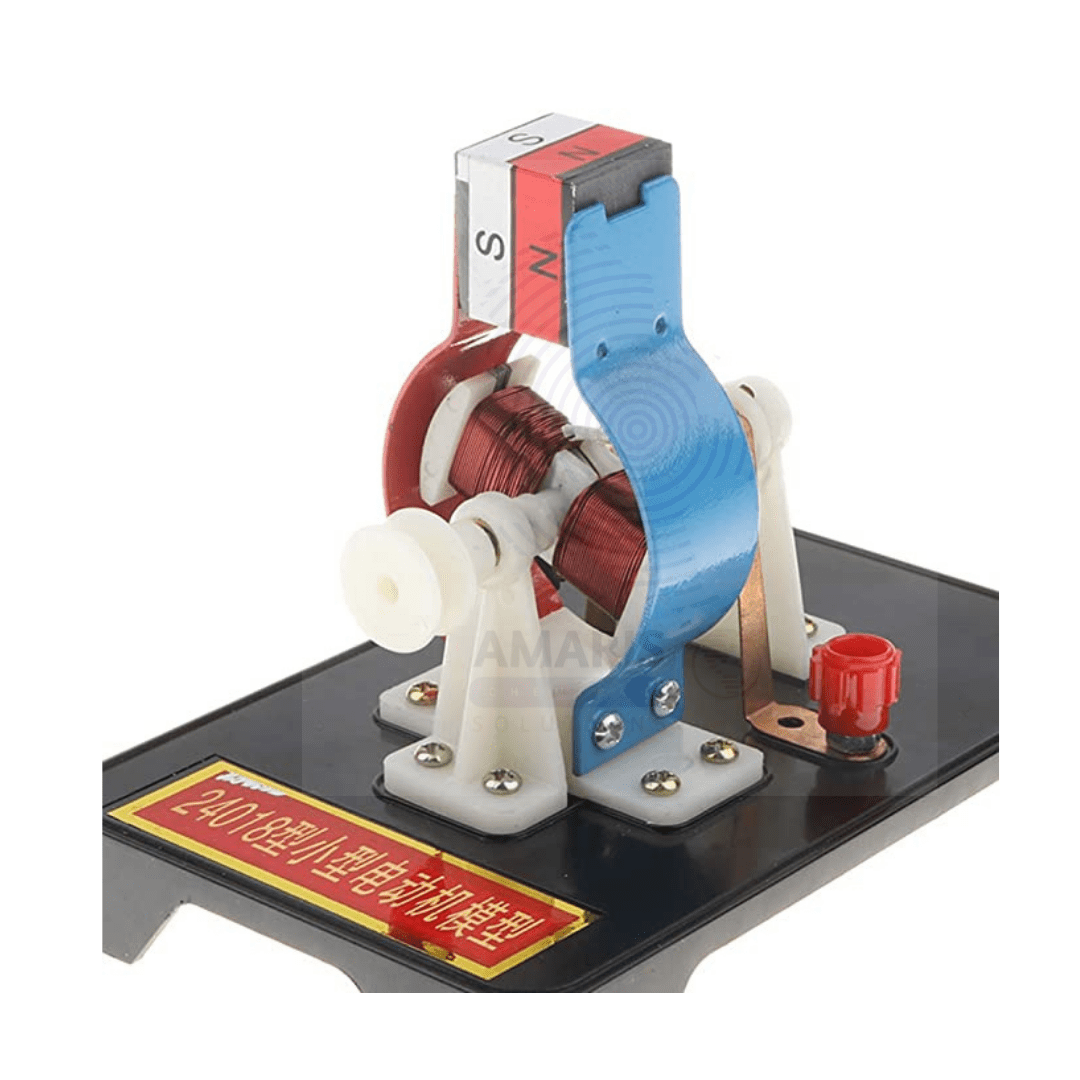

Electric Motor Model

Whatsapp Order

Electric Motor Model is a scaled-down or functional demonstration version of an electric motor designed primarily for educational and training purposes. It replicates the basic components and operation of standard electric motors, allowing users to study electromagnetic principles, motor function, and mechanical motion in a controlled environment. Typically constructed with visible stator coils, rotors, and power sources, these models are essential tools in classrooms, laboratories, and workshops to facilitate hands-on learning in physics, electrical engineering, and related fields.

Description

Uses
Primary Uses
Educational Demonstrations

  • Demonstrates the working principles of AC and DC electric motors to students.

Training and Skill Development

  • Used in technical and engineering training to teach motor assembly, wiring, and troubleshooting.

Research and Development

  • Serves as a prototype for studying motor designs and electromagnetic effects.

Laboratory Experiments

  • Facilitates experiments on torque, speed, and electrical input-output relationships.

Secondary Uses
Science Exhibitions

  • Used in exhibitions and fairs to explain electromechanical concepts interactively.

Prototype Testing

  • Helps in preliminary testing of new motor concepts before full-scale manufacturing.

Hobbyist and DIY Projects

  • Provides a base for hobbyists to build or modify motor projects.

Demonstration Tool in Industry

  • Used by manufacturers to showcase motor features and capabilities to clients and trainees.

PRODUCT KEY FEATURES

Basic Identification Attributes

  • Components: Miniature stator, rotor, wiring, commutator (for DC models), and base frame.

  • Material: Plastic, metal alloys, copper wire, and insulating materials.

  • Power: Low voltage DC or AC supply, often battery-powered or via external power source.

Physical & Chemical Properties

  • Lightweight and portable for ease of handling and demonstration.

  • Clear or open construction to allow visual observation of internal parts.

  • Durable materials suited for frequent handling in educational settings.

Safety & Hazard Attributes

  • Low voltage operation minimizes risk of electrical shock.

  • Small moving parts require caution to prevent pinching or injury.

  • Fragile components may break if mishandled.

Storage & Handling Attributes

  • Store in protective cases to avoid dust accumulation and damage.

  • Handle gently to preserve wiring and mechanical connections.

  • Keep away from moisture and corrosive environments.

Regulatory & Compliance Attributes

  • Complies with educational equipment safety standards.

  • Manufactured to meet low-voltage electrical safety norms.

Environmental & Health Impact

  • Made from recyclable materials where possible.

  • Minimal environmental impact due to low power consumption.

SAFETY HANDLING PRECAUTIONS

Safety Handling Precautions

  • Use under adult supervision, especially with young students.

  • Avoid contact with moving parts during operation.

  • Disconnect power supply when not in use.

First Aid Measures

  • For minor cuts or pinches, clean and disinfect the area.

  • In case of electrical shock, disconnect power and seek medical help if symptoms persist.

Firefighting Measures

  • Use appropriate extinguishers for electrical fires (CO2 or dry powder).

  • Do not use water on electrical components.
