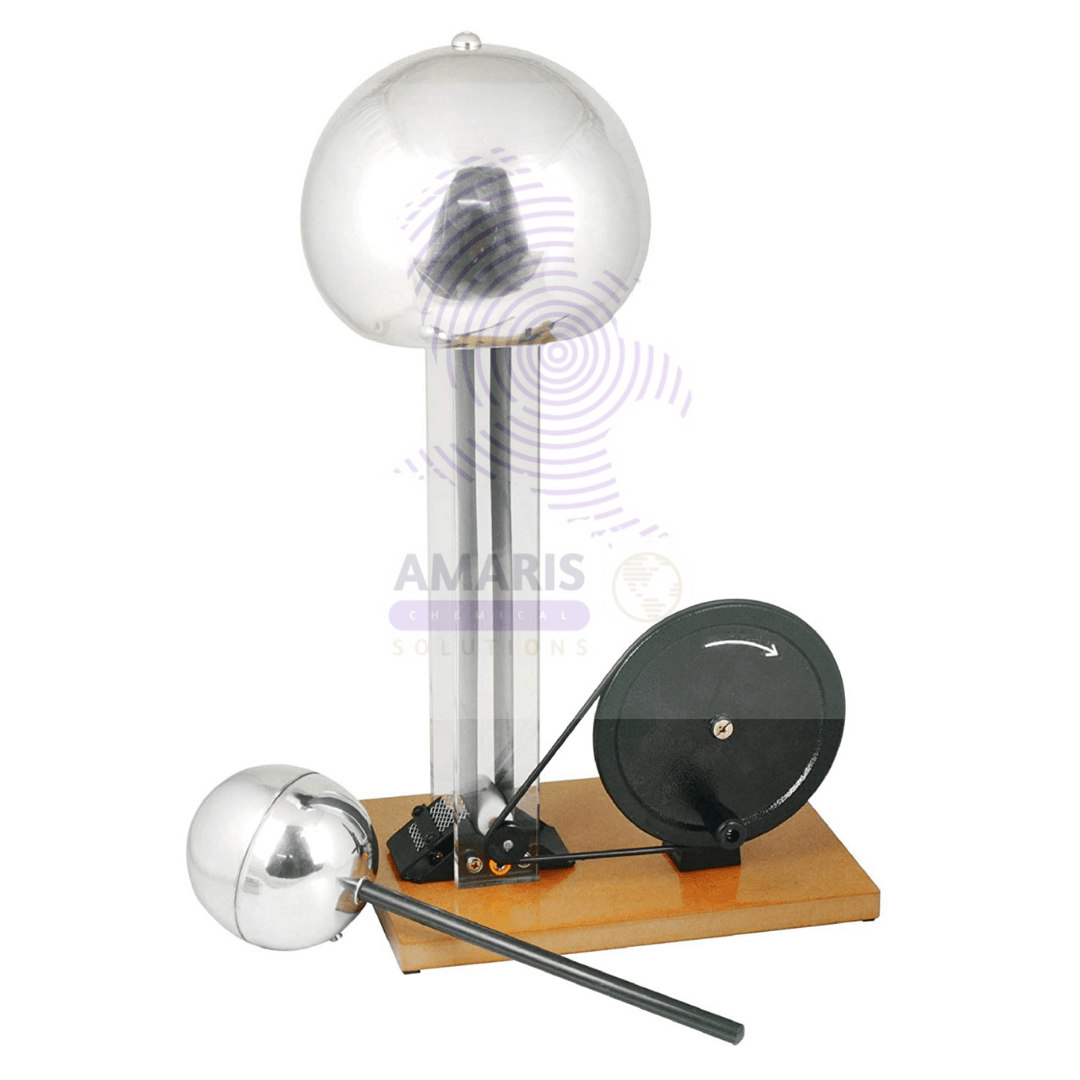

Van de generator manual

Whatsapp Order


Van de Graaff generators are commonly used in laboratory settings to demonstrate principles of electrostatics and high voltage phenomena. While specific manuals can vary based on the manufacturer and model of the generator

Compare

Van de generator manual

  1. Setup:
  • Place the Van de Graaff generator on a stable, level surface, preferably grounded to prevent electrical interference.
  • Ensure the generator is connected to a suitable power source, adhering to the specified voltage and current requirements.
  • Confirm that all necessary safety precautions are in place, including the use of personal protective equipment (PPE) such as safety goggles and gloves.
  1. Assembly:
  • Erect the generator components as per the provided instructions, including the base, insulating column, belt assembly, and terminal sphere.
  • Securely attach any supplementary apparatus, like discharge wands or Faraday cages, following the manufacturer’s guidelines.
  1. Charging:
  • Activate the Van de Graaff generator by toggling the power switch to the “On” position.
  • Gradually adjust the voltage settings, starting from the lowest setting and incrementally increasing to the desired level.
  • Allow sufficient time for the generator to build up charge accumulation on the terminal sphere or dome.
  1. Experimental Procedures:
  • Conduct a range of experiments to elucidate electrostatic principles and phenomena.
  • Examples include:
    • Observing the repulsion or attraction of lightweight objects (e.g., balloons, pith balls) by the charged terminal.
    • Investigating the impact of electrostatic forces on the behavior of insulating and conducting materials.
    • Demonstrating the effects of induced charges and electric fields through visual aids and measurements.
    • Exploring phenomena such as corona discharge, electric breakdown, and ionization.
  1. Safety Guidelines:
  • Adhere strictly to safety protocols outlined in the manual and any institutional regulations.
  • Minimize physical contact with generator components while in operation, especially when operating at high voltages.
  • Avoid operating the Van de Graaff generator in environments with high humidity or moisture content.
  • Implement adequate grounding and insulation measures to mitigate the risk of electrical shocks or discharge accidents.
  1. Shutdown:
  • Upon completion of experiments, deactivate the Van de Graaff generator by switching off the power supply.
  • Allow the generator to discharge completely before disassembling or moving any components.
  • Store the generator in a designated area, protecting it from environmental hazards and ensuring accessibility for future use.
SKU: ACS37973CHEM0 Category:

Safety precautions

Safety precautions for operating a Van de Graaff generator in a laboratory environment are crucial to ensure the well-being of individuals and the integrity of equipment. Here are some typical safety guidelines found in manuals:

  1. Personal Protective Equipment (PPE):
    • Wear appropriate PPE, including safety goggles, lab coats, and gloves, to protect against potential electrical hazards and accidental contact with charged components.
  2. Training and Supervision:
    • Only trained personnel familiar with the operation and safety procedures should handle the Van de Graaff generator.
    • Conduct experiments under the supervision of qualified individuals, particularly when working with high voltages or conducting complex procedures.
  3. Environment:
    • Operate the generator in a well-ventilated laboratory area with adequate space to prevent accidental contact with surrounding objects or individuals.
    • Ensure the workspace is free of clutter and obstacles to facilitate safe movement and operation.
  4. Electrical Safety:
    • Verify that the power source and electrical connections comply with the manufacturer’s specifications.
    • Use insulated tools and equipment when adjusting or handling components to prevent electrical shocks or short circuits.
  5. High Voltage Precautions:
    • Treat all components of the Van de Graaff generator as potentially charged, even when powered off, and exercise caution accordingly.
    • Avoid touching the terminal sphere or any exposed conductive parts while the generator is operational or charged.
  6. Grounding and Insulation:
    • Implement proper grounding techniques to dissipate excess charge and minimize the risk of electric shock.
    • Insulate conductive surfaces and materials that may come into contact with charged components to prevent unintentional discharge or arcing.
  7. Emergency Procedures:
    • Establish clear emergency protocols, including procedures for shutting down the generator, in the event of electrical malfunctions, equipment damage, or personnel injury.
    • Maintain accessible fire extinguishers and first aid kits in the vicinity of the laboratory.
  8. Risk Assessment:
    • Conduct a thorough risk assessment prior to each experiment to identify potential hazards and mitigate associated risks.
    • Develop contingency plans and alternative procedures to address unforeseen circumstances or emergencies.
  9. Regular Maintenance and Inspection:
    • Perform routine maintenance checks and inspections to ensure the Van de Graaff generator and associated equipment are in good working condition.
    • Promptly address any signs of wear, damage, or malfunction to prevent accidents and maintain operational safety.
  10. Documentation and Reporting:
    • Maintain detailed records of equipment usage, maintenance activities, safety incidents, and near misses.
    • Report any safety concerns, incidents, or accidents to appropriate personnel and regulatory authorities as necessary.
