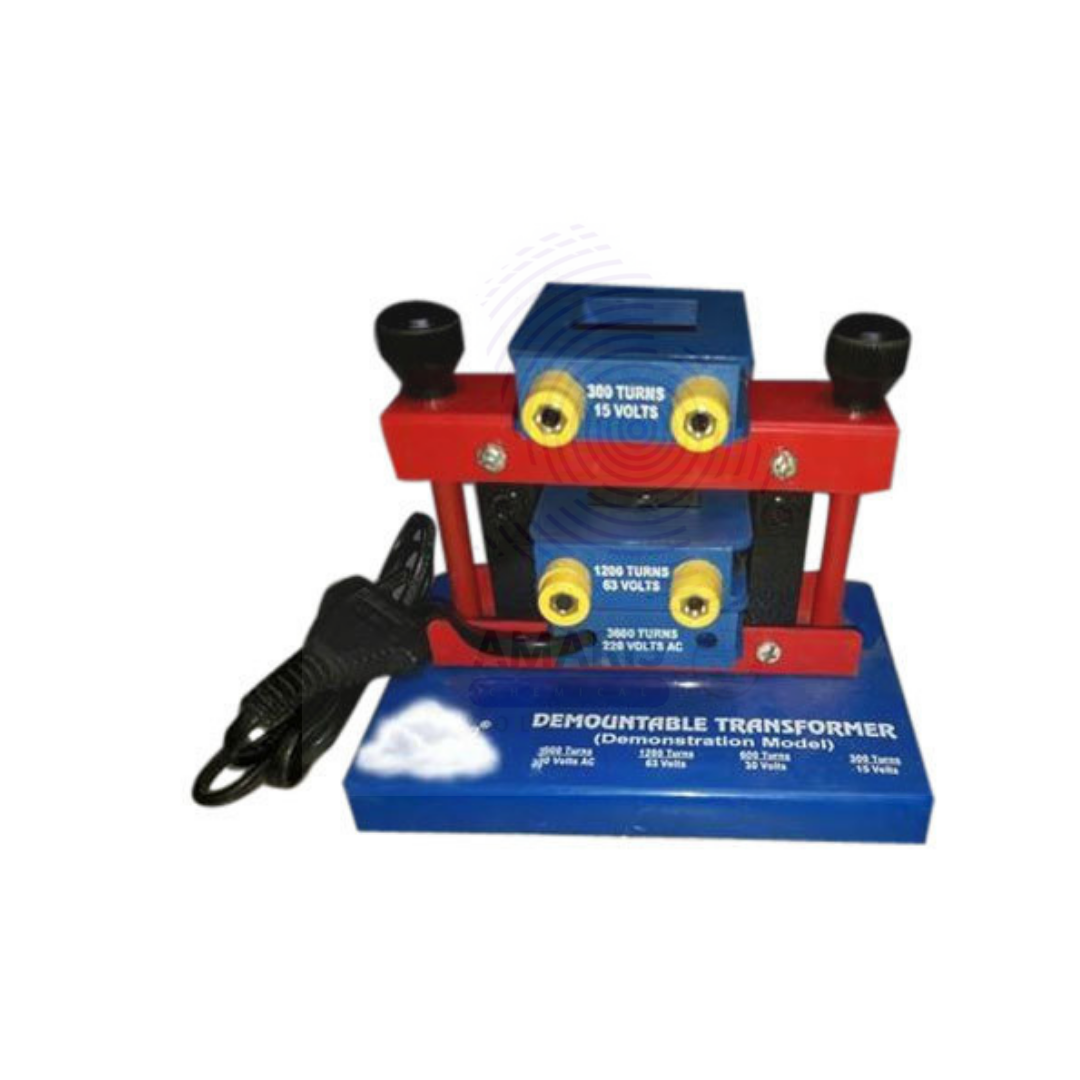

Demonstration transformer

Whatsapp Order

The Demonstration Transformer is an educational and laboratory device designed to illustrate the principles of electromagnetic induction, voltage transformation, and mutual inductance. Typically composed of a laminated iron core with interchangeable primary and secondary coils, it allows for hands-on experiments involving step-up and step-down voltage transformation. Ideal for both laboratory demonstrations and industrial training settings, it supports a range of voltage and current inputs and can safely demonstrate real-time transformer behavior using AC power sources.

Add to compare

Add to wishlist

Category: Specialized Scientific Instruments Tags: Coil Winding Apparatus, Demonstration Transformer, Electromagnetic Induction, Physics Lab Equipment, Step-Down Transformer, Step-Up Transformer

Description

Table of Contents

Demonstration transformer

Primary Uses

Laboratory Applications
Used to demonstrate electromagnetic induction and Faraday’s Law in physics labs.
• Facilitates hands-on experiments involving voltage transformation (step-up/step-down).
• Employed in training students on transformer principles, coil winding, and magnetic field interaction.
• Supports visual demonstrations of primary and secondary circuit behavior in AC systems.

Secondary Uses

Industrial Applications
Applied in technical training centers for operator and technician instruction.
• Used in testing and development of small-scale electrical components in R&D labs.
• Serves in maintenance workshops for demonstrating principles of transformer diagnostics.
• Integrated into controlled testing environments for prototype circuit simulations.

KEY PRODUCT FEATURES

1.Basic Identification Attributes

• Device Type: Demonstration Transformer
• Core: Laminated iron core
• Coils: Interchangeable or fixed primary and secondary windings
• Function: Voltage transformation, electromagnetic induction demonstration

2.Physical & Chemical Properties

• Voltage Rating: Typically low-voltage (up to 240V AC input)
• Output: Variable depending on winding ratio
• Construction: Metal core with insulated copper wire coils
• Mounting: Bench-top with terminal connectors or clamps

3.Safety & Hazard Attributes

• Electrical Hazard: Risk of electric shock; use proper insulation and supervision
• Heat Generation: Coils may heat during prolonged use
• Toxicity: Non-toxic materials
• Safety Labeling: May include high-voltage warning for user safety

4.Storage & Handling Attributes

• Storage Conditions: Keep dry; store at room temperature in dust-free environment
• Handling Precautions: Do not overload coils; ensure secure wiring before use
• Container Type: Typically boxed or bench-mounted unit

5.Regulatory & Compliance Attributes

• Complies with basic electrical safety regulations for lab equipment
• Designed for educational and light industrial use within standard voltage ratings

6.Environmental & Health Impact

• No hazardous emissions during normal use
• Minimal environmental impact; components recyclable where applicable

SAFETY HANDLING PRECAUTIONS

Safety Handling Precautions

• Use insulated gloves and ensure supervision during experiments
• Disconnect power supply before adjusting or modifying coil setups

First Aid Measures

• Inhalation: Not applicable
• Skin Contact: If shocked, assess for burns and seek medical attention
• Eye Contact: Not applicable
• Ingestion: Not applicable

Firefighting Measures

• Fire Hazards: Electrical short circuits may cause sparking
• Extinguishing Media: Use CO₂, dry chemical, or foam—avoid water on energized units
• Special Precautions: Disconnect power source before firefighting
