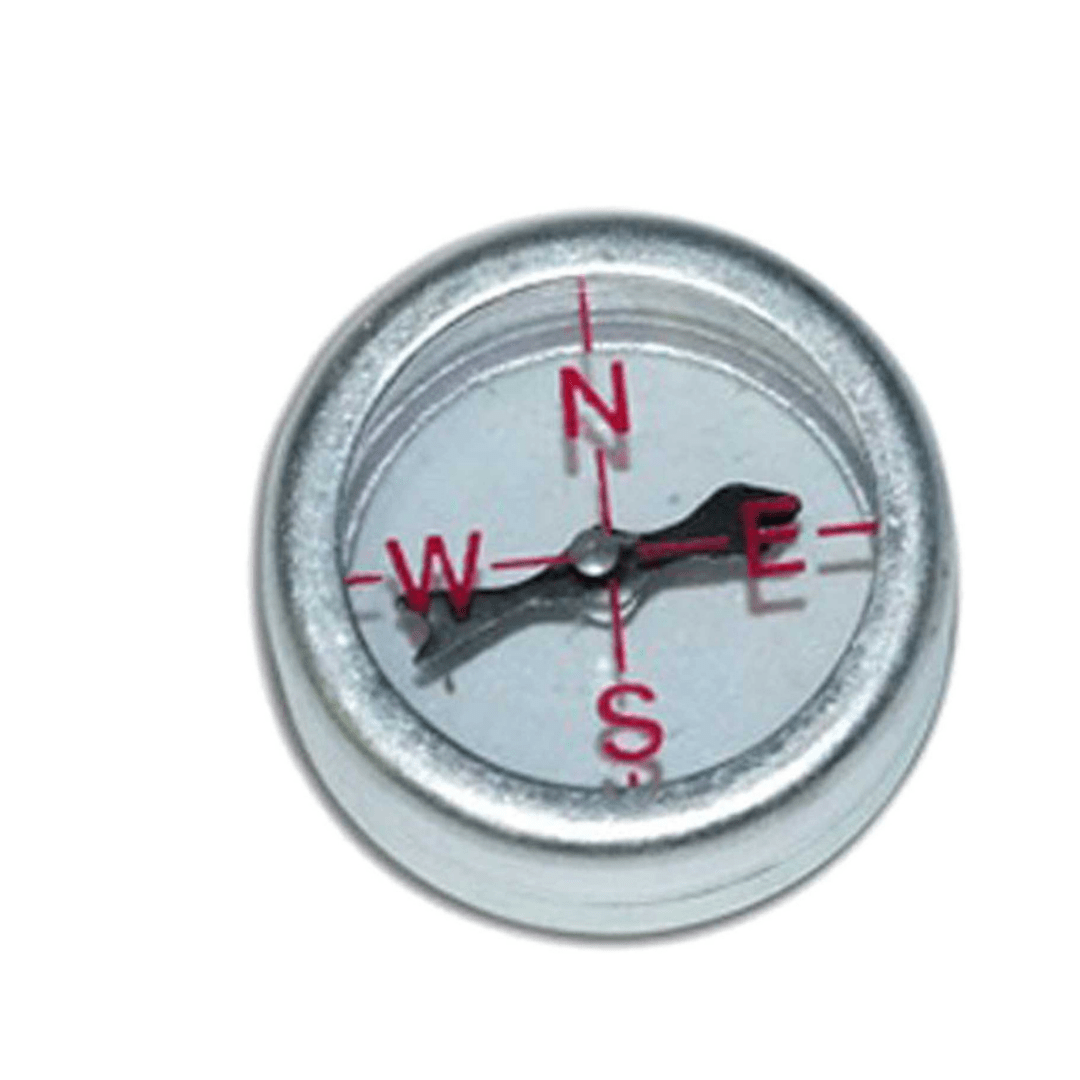

Uses of Magnetic plotting compass

• Direction Determination:

It helps determine the cardinal directions (north, south, east, west) in the lab for various experiments requiring orientation.

• Geological Surveys:

In geology, it is used to measure the orientation of rock formations, faults, and mineral veins, assisting in mapping geological structures.

• Magnetic Field Studies:

It can be employed to study the Earth’s magnetic field or the magnetic fields generated by different materials, providing insights into magnetism.

• Mapping and Charting:

The compass aids in creating maps or charts of experimental setups, ensuring accurate representation of spatial relationships.

• Navigation in Fieldwork:

When labs conduct field studies, the compass assists in navigating the area to collect samples or data accurately.

• Determining Declination:

It helps measure magnetic declination (the angle between magnetic north and true north), which is crucial for precise mapping.

• Orientation of Samples:

In certain experiments, it can help orient samples or devices in a specific direction relative to the Earth’s magnetic field.

• Educational Demonstrations:

It serves as an educational tool to demonstrate principles of magnetism and navigation in laboratory or classroom settings
